DC / AC Solar Submersible SS Pumpset

DC / AC Solar Submersible SS Pumpset

  1. High Efficiency Across the range of motor speed And pump output head.
  2. Synchronous Drive Control.
  3. Minimum Reactive Power Consumption Resulting in Higher Efficiency.
  4.  Higher Power Factor.
Inquiry Now
Contact Now

V4 Performance Table

PUMP CODE KW HP SOLAR MODULE REQUIRED MPPT RANGE DC WATT (W) MAX. AMP PUMP DIAMETER HEAD (Hm) FLOW (Lpm) DISCHARGE OUTLET
PTH-2K-SO2 0.8 0.25 1SX300wp 10-40 V 300 7-8 V-4 10 27 1″
PTH-2K-SO2 0.18 0.25 1SX300wp 10-40 V 300 7-8 V-4 20 23 1″
PTH-2K-SO2 0.18 0.25 1$X300wp 10-40 V 300 7-8 V-4 30 17 1″
PTH-5K-SO4 0.37 0.5 2SX250wp 30-80 V 500 7-8 V-4 10 51 1 1/4″
PTH-5K-SO4 0.37 0.5 2SX250wp 30-80 V 500 7-8 V-4 20 25 1 1/4″
PTH-5K-SO4 0.37 0.5 2SX250wp 30-80 V 500 7-8 V-4 30 20 1 1/4″
PTH-9K-SO8 0.75 1.0 3SX335wp 80-110 V 900 7-8 V-4 30 62 1 1/4″
PTH-9K-S14 0.75 1.0 3SX335wp 80-110 V 900 7-8 V-4 60 30 1 1/4″
PTH-9K-S18 0.75 1.0 3SX335wp 80-110 V 900 7-8 V-4 90 16 1 1/4″
PTH-12K-SO7 0.75 1.0 4SX335wp 100-130 V 1200 7-8 V-4 30 120 2″
PTH-18K-SO8 1.5 2.0 6SX335wp 180-230 V 1800 7-8 V-4 30 171 2″
PTH-30K-SO4 2.2 3.0 9SX335wp 300-350 V 3000 7-8 V-4TOV6 30 286 2″
PTH-30K-S12 2.2 3.0 9SX335wp 300-350 V 3000 7-8 V-4 50 175 2″
PTH-30K-SI5 2.2 3.0 9SX335wp 300-350 V 3000 7-8 V-4 70 120 2″
PTH-48K-SO7 3.7 5.0 15SX335wp 490-800 V 4800 7-8 V-4TOV6 50 265 2″
PTH-48K-SO9 3.7 5.0 15SX335wp 490-800 V 4800 7-8 V-4 70 165 2″
PTH-48K-S20 3.7 5.0 15SX335wp 490-800 V 4800 7-8 V-4 100 145 2″
PTH-48K-SO7P 3.7 5.0 8PX300wp 8S X 2STRINGS 300-350 V 4800 15-16 V-4 TO V6 50 265 2″
PTH-48K-SO9P 3.7 5.0 8PX300wp 8S X 2STRINGS 300-350 V 2800 15-16 V-4 70 165 2″
PTH-48K-S20P 3.7 5.0 8PX300wp 8S X 2STRINGS 300-350 V 4800 15-16 V-4 100 145 2″
PTH-68K-SO8 5.0 7.5 22PX335wp 11S X 2STRINGS 300-350 V 6750 15-16 V-4 TO Vé 50 405 2″ / 1/2“
PTH-68K-S10 5.0 7.5 22PX335wp 11S X 2STRINGS 300-350 V 6750 15-16 V-4 TO Vé 70 265 2″ / 1/2“
PTH-68K-S23 5.0 7.5 22PX335wp 11S X 2STRINGS 300-350 V 6750 15-16 V-4 100 185 2″ / 1/2“
PTH-90K-S1O 7.5 10 30PX335wp 15S X 2STRINGS 490-800 V 9000 17-18 V-4TOV6 50 535 2″ / 1/2“
PTH-90K-S18 7.5 10 30PX335wp 15S X 2STRINGS 490-800 V 9000 17-18 V-4 70 350 2″ / 1/2“
PTH-90K-S25 7.5 10 30PX335wp 15S X 2STRINGS 490-800 V 9000 17-18 V-4 100 248 2″ / 1/2“

V6 Performance Table

PUMP CODE KW HP SOLAR MODULE REQUIRED MPPT RANGE DC WATT (W) MAX. AMP PUMP DIAMETER HEAD (Hm) FLOW (Lpm) DISCHARGE OUTLET
PTIWF-3000 2.2 3.0 9Sx335wp 300-350V 3000 7-8A V6 30 280 2.5″
PTIWF-3000 2.2 3.0 9Sx335wp 300-350V 3000 7-8A V6 50 165 2.0″
PTIWF-3000 2.2 3.0 9Sx335wp 300-350V 3000 7-8A V6 to V4 80 90 1.5″
PTIWF-3000 2.2 3.0 9Sx335wp 300-350V 3000 7-8A V6 to V4 100 66 1.5
PTIWF-5000 3.7 5.0 15Sx335wp 490-800V 4800 7-8A V6 30 470 3.0″
PTIWF-5000 3.7 0.5 15Sx335wp 490-800V 4800 7-8A V6 50 280 2.5″
PTIWF-5000 3.7 5.0 15Sx335wp 490-800V 4800 7-8A V6 70 200 2.0″
PTIWF-5000 3.7 5.0 15Sx335wp 490-800V 4800 7-8A V6 to V4 80 200 2.0″
PTIWF-5000 3.7 5.0 15Sx335wp 490-800V 4800 7-8A V6 to V4 100 150 2.0″
PTIWF-5000 3.7 5.0 15Sx335wp 490-800V 4800 7-8A V6 to V4 150 65 1.5″
PTIWF-7500 5.5 7.5 22Px335wp 11S X 2STRINGS 300-350V 6750 15-16A V6 30 650 4.0″
PTIWF-7500 5.5 7.5 22Px335wp 11S X 2STRINGS 300-350V 6750 15-16A V6 50 390 3.0″
PTIWF-7500 5.5 7.5 22Px335wp 11S X 2STRINGS 300-350V 6750 15-16A V6 70 305 2.5″
PTIWF-7500 5.5 7.5 22Px335wp 11S X 2STRINGS 300-350V 6750 15-16A V6 100 170 2.0″
PTIWF-7500 5.5 7.5 22Px335wp 11S X 2STRINGS 300-350V 6750 15-16A V6 to V4 V150 110 2.0″
PTIWF-10000 7.5 10.0 30Px335wp 15S X 2STRINGS 490-800V 9000 17-18A V6 50 540 3.0
PTIWF-10000 7.5 10.0 30Px335wp 15S X 2STRINGS 490-800V 9000 17-18A V6 70 380 2.5″
PTIWF-10000 7.5 10.0 30Px335wp 15S X 2STRINGS 490-800V 9000 17-18A V6 100 300 2.5″
PTIWF-10000 7.5 10.0 30Px335wp 15S X 2STRINGS 490-800V 9000 17-18A V6 140 170 2.0″
PTIWF-15000 11.0 15.0 45Px325wp 15S X 3STRINGS 490-800V 24-25A V6 70 580 3.0″
PTIWF-15000 11.0 15.0 45Px325wp 15S X 3STRINGS 490-800V 24-25A V6 100 460 3.0″
PTIWF-15000 11.0 15.0 45Px325wp 15S X 3STRINGS 490-800V 24-25A V6 180 170 2.0″
PTIWF-20000 15.0 20.0 60Px325wp 15S X 4STRINGS 490-800V 32A V6 100 540 3.0”
PTIWF-20000 15.0 20.0 60Px325wp 15S X 4STRINGS 490-800V 32A V6 180 280 2.5″
PTIWF-20000 15.0 20.0 60Px325wp 15S X 4STRINGS 490-800V 32A V6 250 160 2.0″
PTIWF-25000 18.7 25 75Px325wp 15S X 5STRINGS 490-800V 38-40A V6 150 460 3.0″
PTIWF-25000 18.7 25 75Px325wp 15S X 5STRINGS 490-800V 38-40A V6 200 300 2.5″
PTIWF-25000 18.7 25 75Px325wp 15S X 5STRINGS 490-800V 38-40A V6 250 230 2.5″
PTIWF-25000 18.7 25 75Px325wp 15S X 5STRINGS 490-800V 38-40A V6 300 165 2.0″
PTIWF-30000 22.4 30 90Px325wp 15S X 6STRINGS 490-800V 45A V6 180 500 3.0″
PTIWF-30000 22.4 30 90Px325wp 15S X 6STRINGS 490-800V 45A V6 250 300 2.5″
PTIWF-30000 22.4 30 90Px325wp 15S X 6STRINGS 490-800V 45A V6 300 200 2.5″

Product Gallery

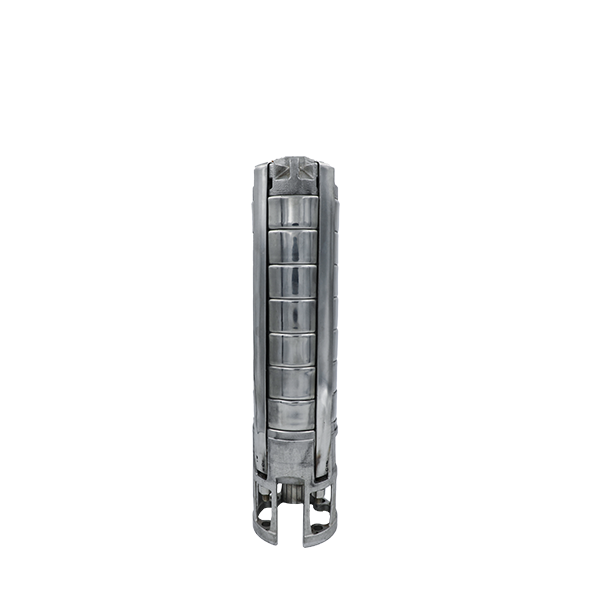

DC- AC Solar Submersible SS Pumpset 0.5 hp
DC- AC Solar Submersible SS Pumpset 0.5 hp

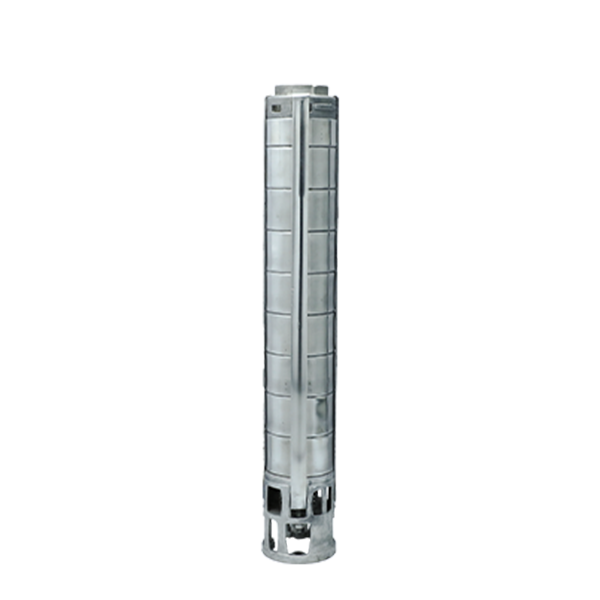

DC- AC Solar Submersible SS Pumpset 1 hp
DC- AC Solar Submersible SS Pumpset 1 hp

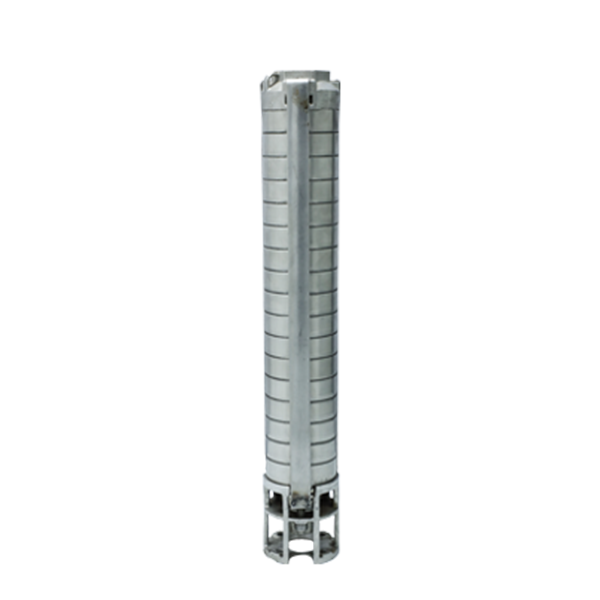

DC- AC Solar Submersible SS Pumpset 2 hp
DC- AC Solar Submersible SS Pumpset 2 hp

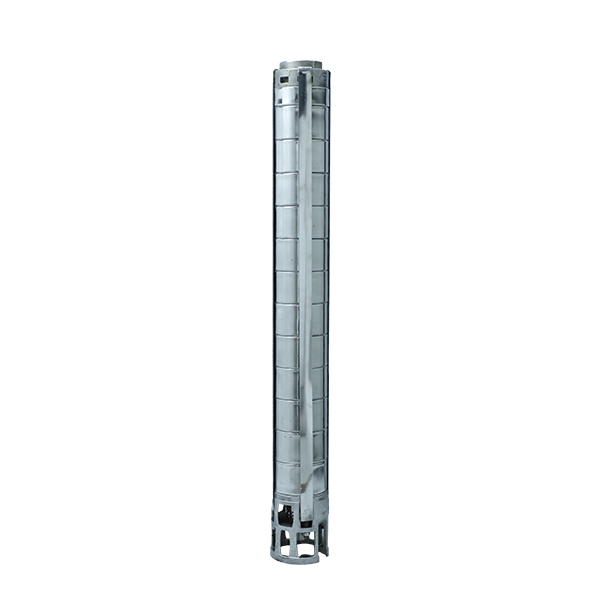

DC- AC Solar Submersible SS Pumpset 3 hp
DC- AC Solar Submersible SS Pumpset 3 hp
DC- AC Solar Submersible SS Pumpset 5 hp
DC- AC Solar Submersible SS Pumpset 5 hp

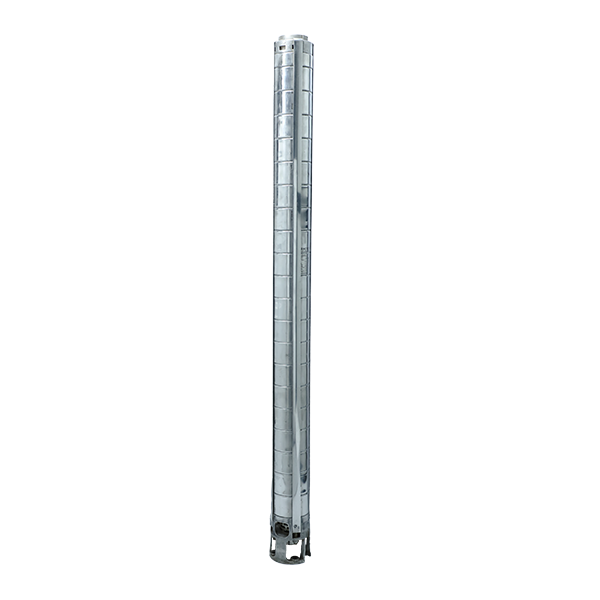

DC- AC Solar Submersible SS Pumpset 7.5 hp
DC- AC Solar Submersible SS Pumpset 7.5 hp
