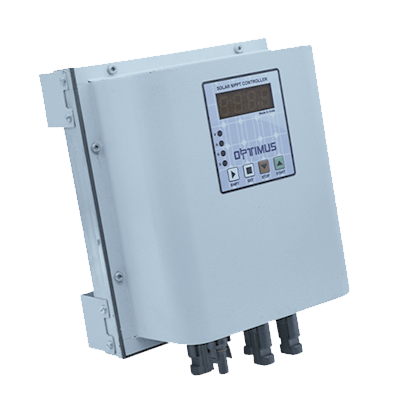

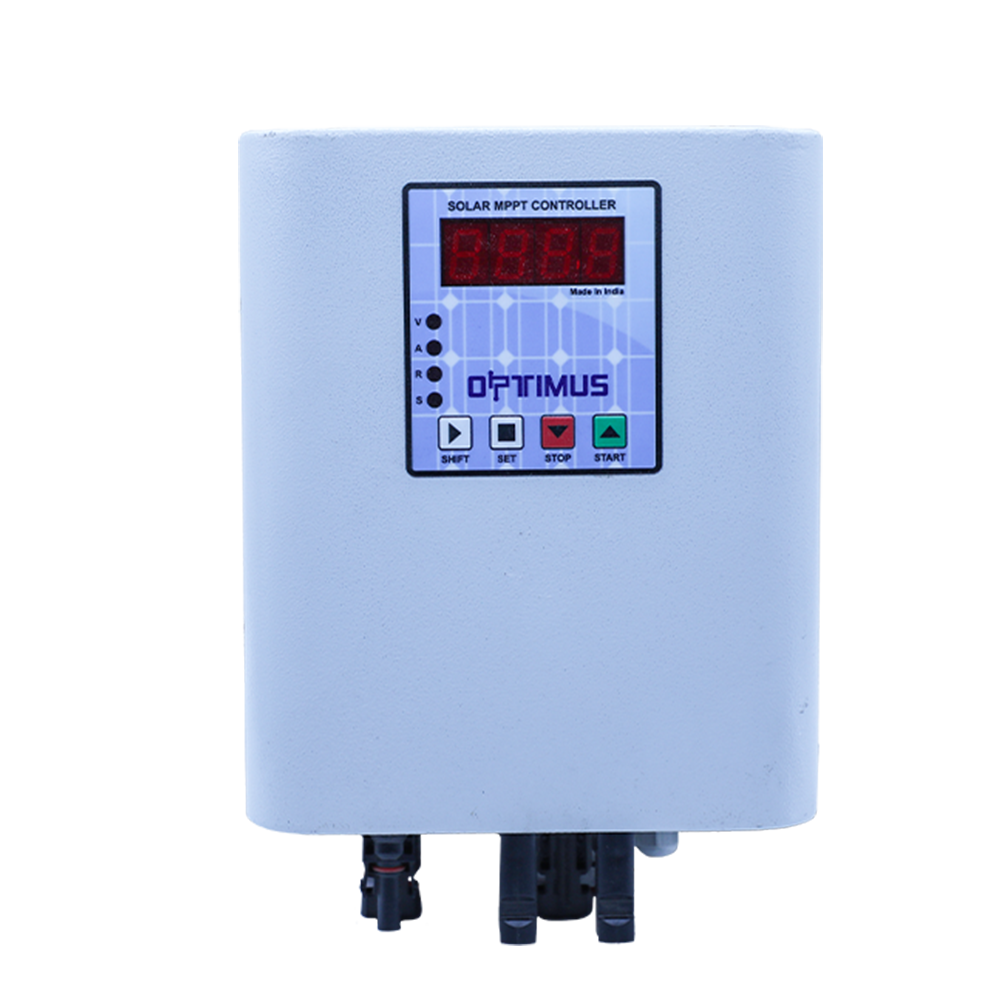

Solar Controller

High Efficiency Across the range of motor speed And pump output head.
Synchronous Drive Control.
Minimum Reactive Power Consumption Resulting in Higher Efficiency.
Higher Power Factor.

PARAMETERS

PUMP CODE	MOTOR POWER	RECOMMENDED SOLAR ARREY	MINIMUM INPUT VOLTAGE	MAXIMUM INPUT VOLTAGE	MAXIMUM OUTPUT CURRENT PER PHASE	OUTPUT FREQUENCY
	HP	KWP	V	V	A (rms)	A (rms)
A	0.5	0.3 TO 0.6	60	120	7.5	UP TO 110
B	1	0.8TO 1.2	60	200	7.5	UP TO 110
C	2	1.5 TO 2.0	130	350	7.5	UP TO 110
D	3	1.8 TO 3.5	130	430	7.5	UP TO 110
E	5	4.510 5.5	130	800	7.5	UP TO 110
F	7.5	6.8 KW	130	500	7.5	UP TO 200
G	10	9.6 KW	300	800	7.5	UP TO 200

SPECIFICATIONS

1	Type Of Motor	PMSM / Induction
2	Mppt Efficiency	>99.9%
3	Output Frequency Range	20hz-110hz
4	Drive Efficiency	>98% Lop
5	Temperature	Ambient Max 50 Deg C
6	Indication	1. Led 7 Segment X 5 Display For Motor And Solar Parameters Like Power, Voltage,Current, Energy, Frequency, Temperature, Time Running 2. Leds To Show Pump Status (Sump On, Fault, Tank Full)
7	Additional Interfaces	Float Switch Input
8	Port	PV + Ve And – Ve, 3 Phase Output
9	Protection Class	IP 65
10	Cooling	Natural Air Cooled
11	Solar Pump Protection Functions	Short Circuit/ Inter-pahse Fault Of Motor, Phase Open, Pv Reverse, Pv Short, Dry Run Detection & Stopping Of Motor, Pump Clogging & High Torque Current Drawn, High Temperature Auto Back Off

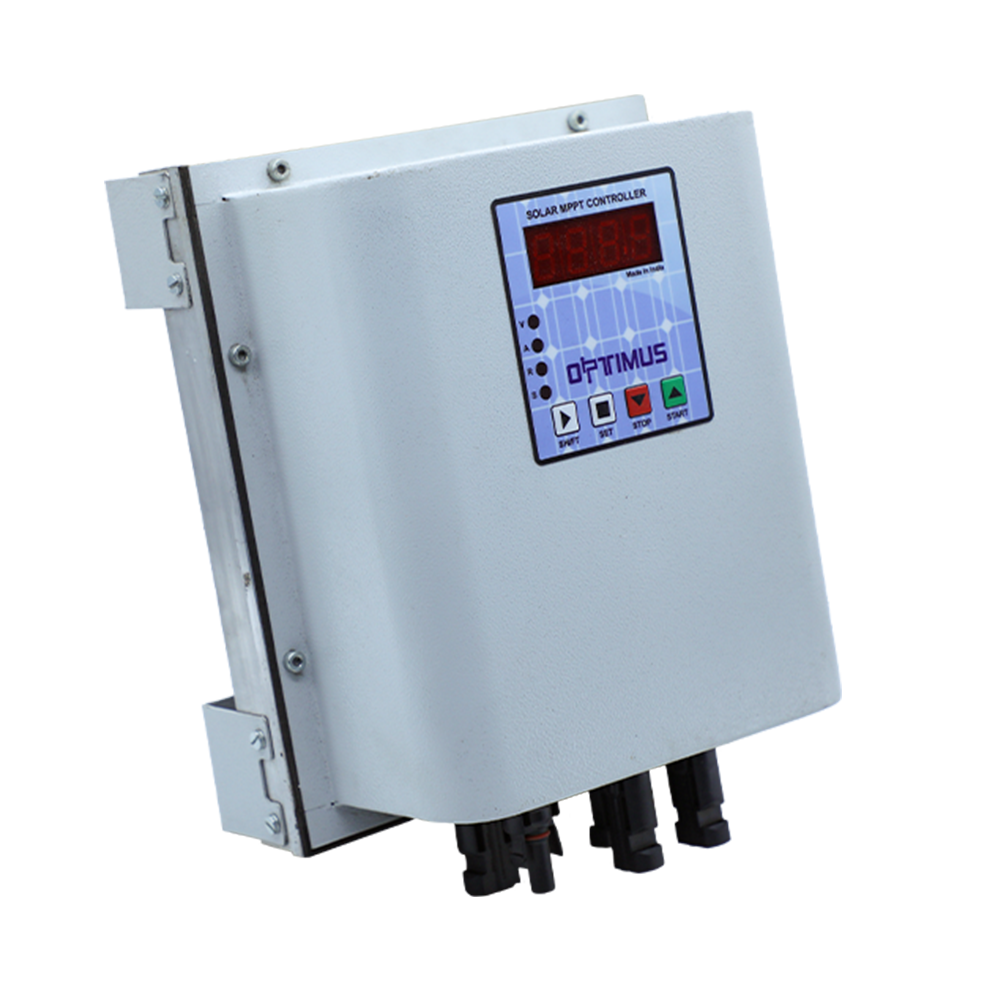

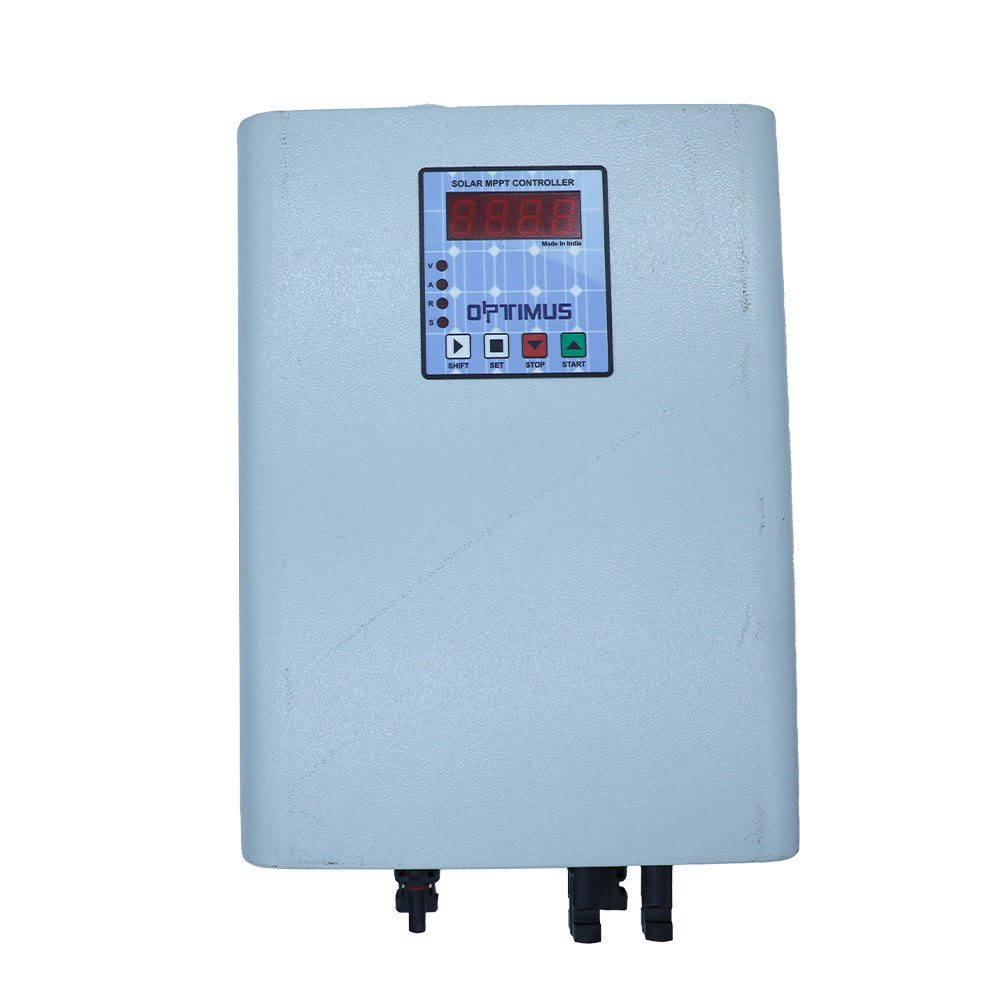

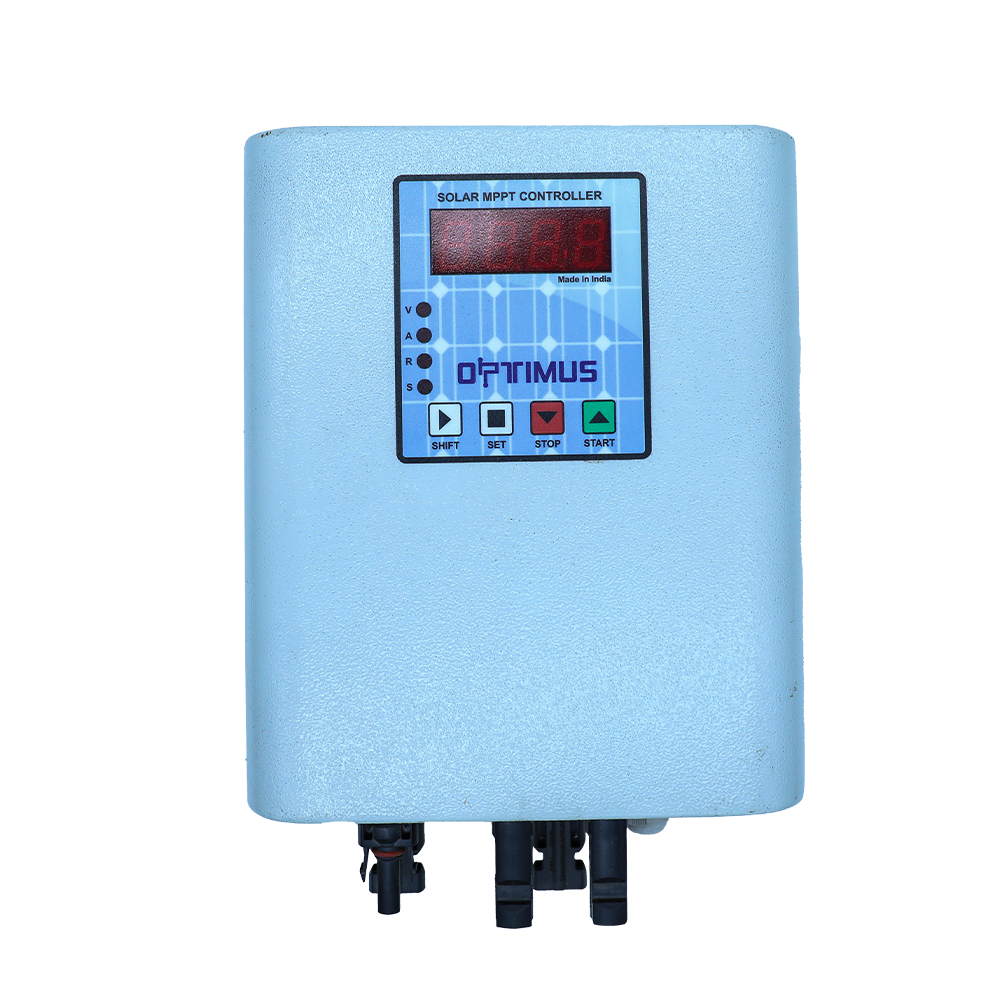

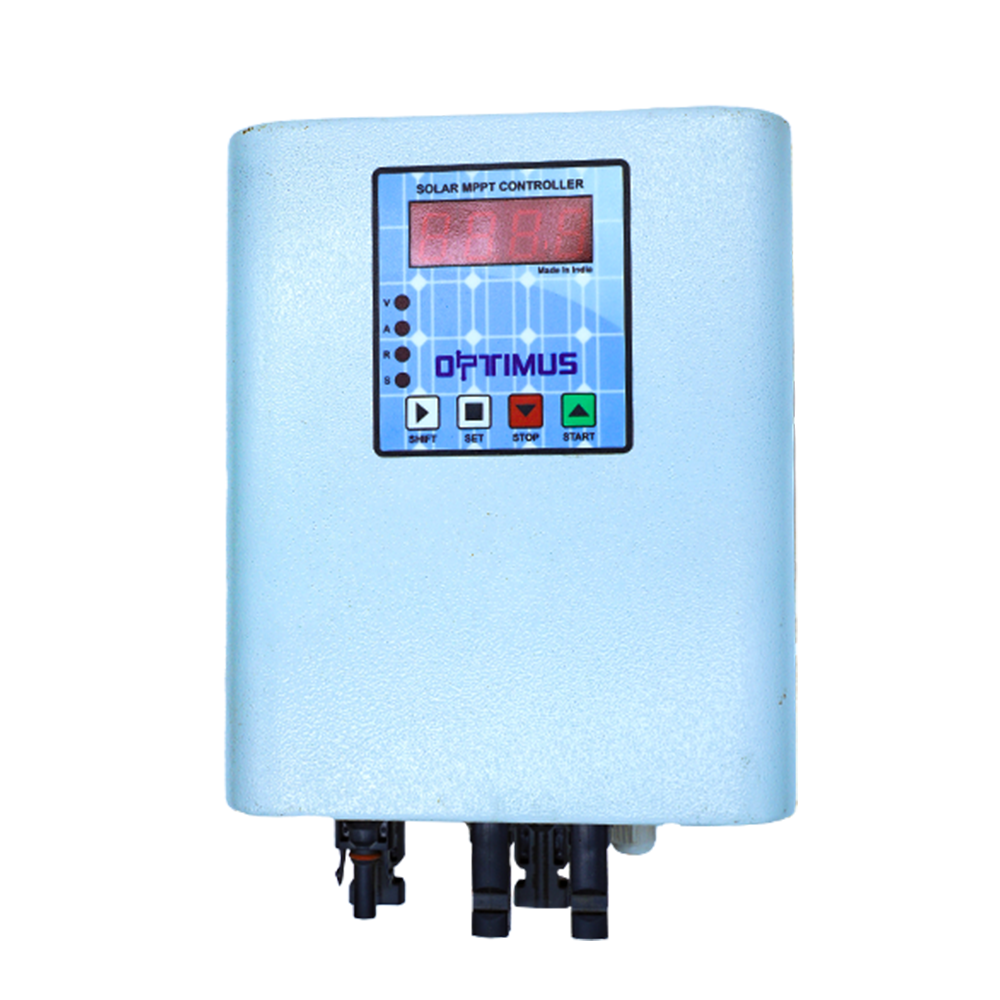

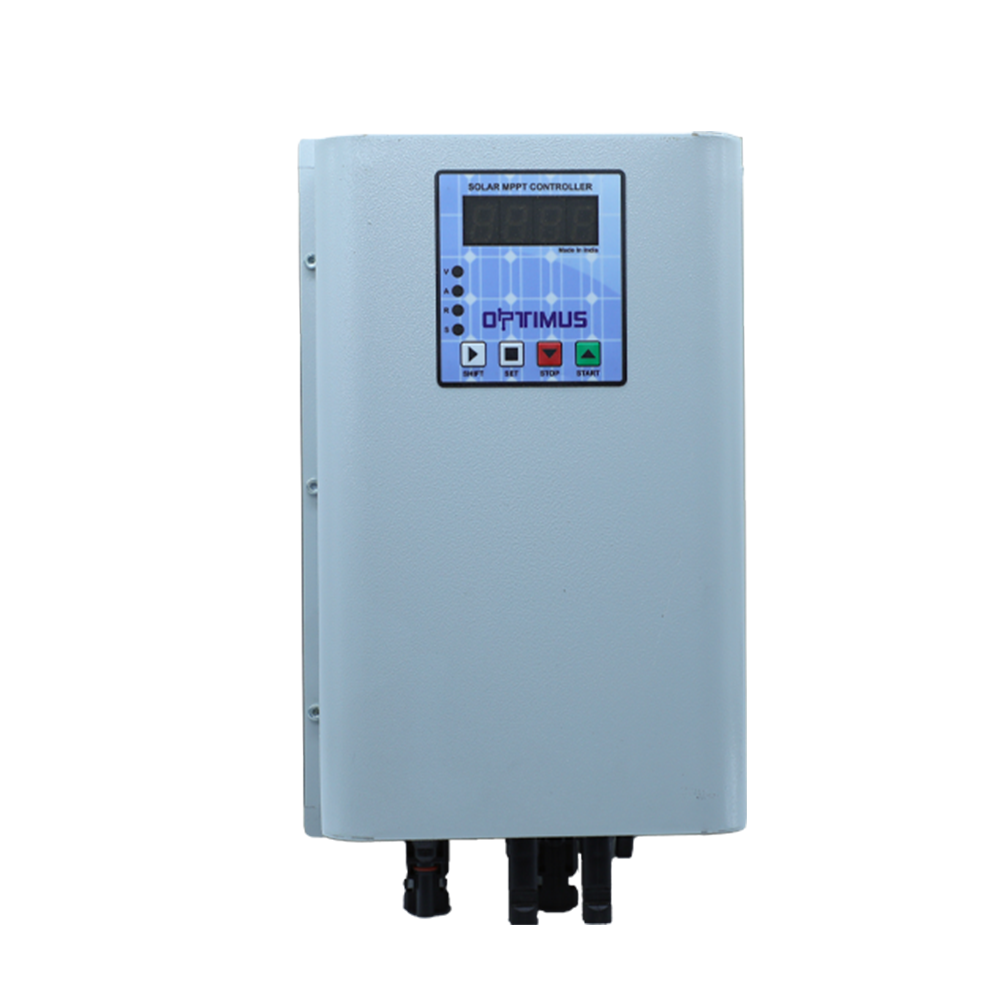

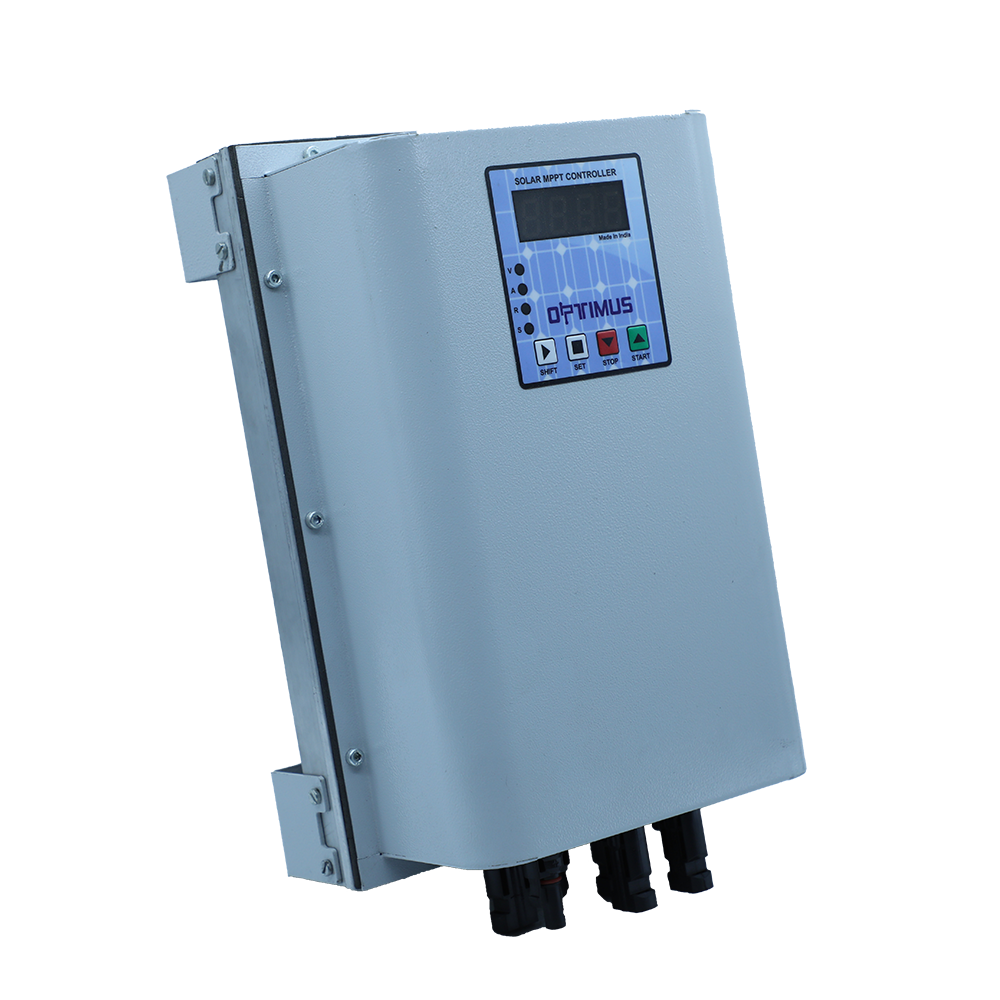

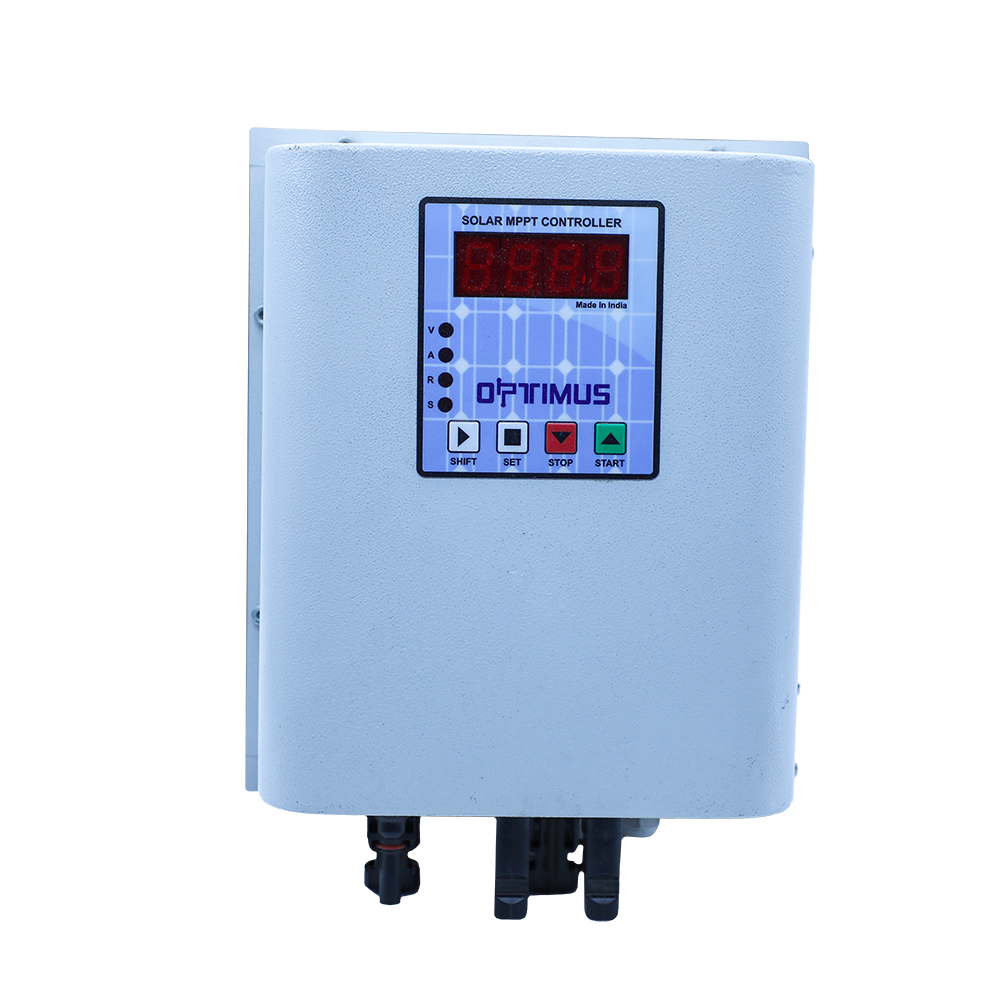

Product Gallery
